GCP Compute Engine Deployment

How to deploy OpenOps on a GCP Compute Engine instance

This guide is for testing and evaluation purposes only and is not intended for production deployments. Please reach out to us at [e-mail] if you’d like to learn how to set up OpenOps in a production environment.

This guide explains how to install the OpenOps Docker Compose release on a newly created GCP Compute Engine VM instance.

It assumes you have appropriate permissions on an existing Google Cloud Platform (GCP) project.

Initial deployment

Create a new VM instance

1. In the Google Cloud Console, navigate to Compute Engine → VM instances.
2. Click Create Instance.

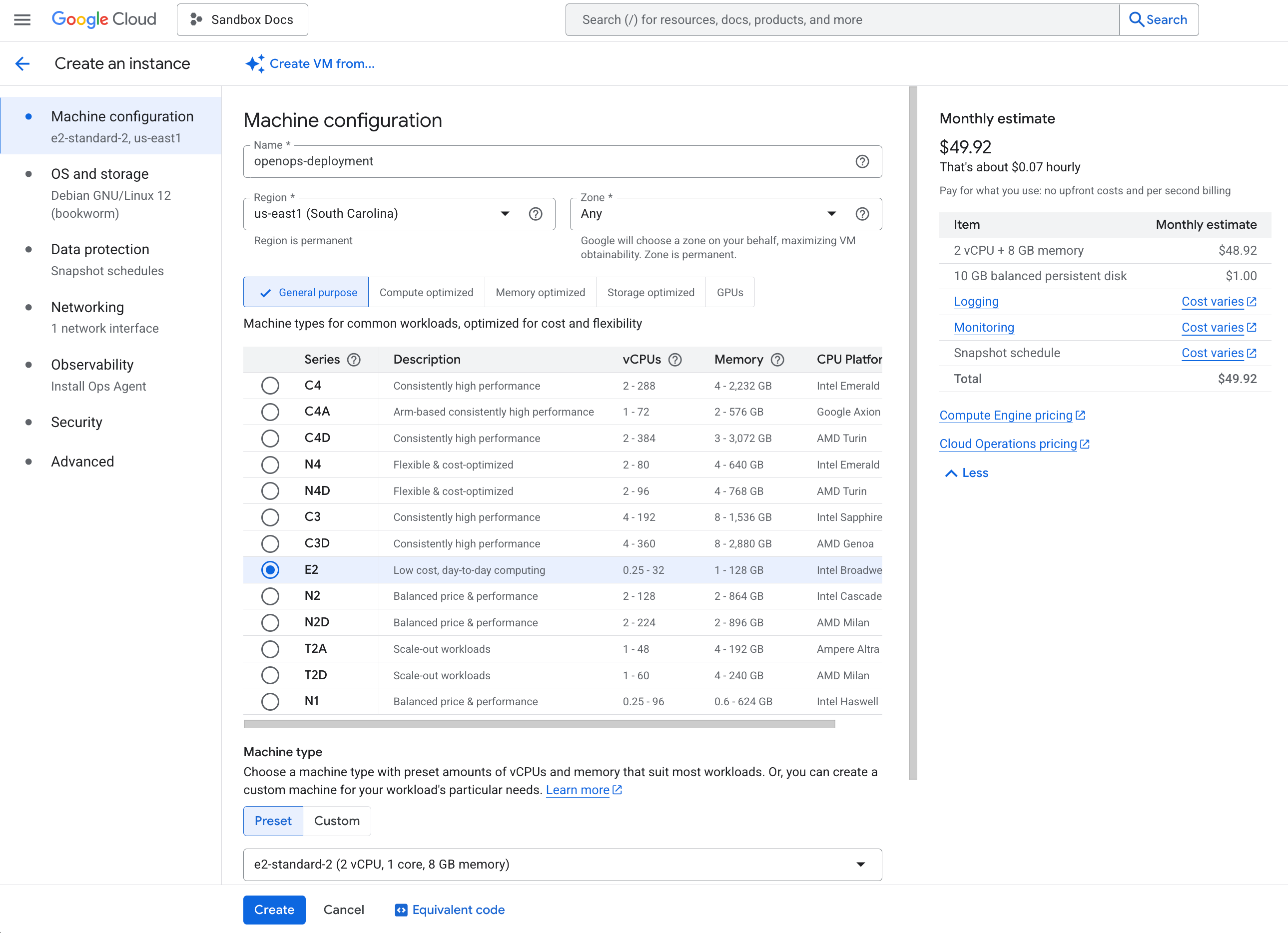

3. Under Machine configuration, configure the following:
   • Name: Enter a name for your virtual machine.
   • Region: Choose a region close to your users (e.g., us-east1).
   • Zone: Choose a zone close to your users (e.g., us-east1-b), or leave the default to let Google choose one for you.
   • Series: Choose any recommended series (e.g., E2) or another family you prefer.
   • Machine type: Choose a machine size similar to e2-standard-2 or larger. Avoid very small machines, as OpenOps may need additional CPU/RAM for running Docker containers smoothly.
4. Under OS and storage:
   1. Click Change.
   2. Select Ubuntu as the operating system (Ubuntu 24.04 LTS if available, or a close alternative).
   3. Increase Size to at least 50GB to accommodate Docker images and databases.
   4. Click Select.

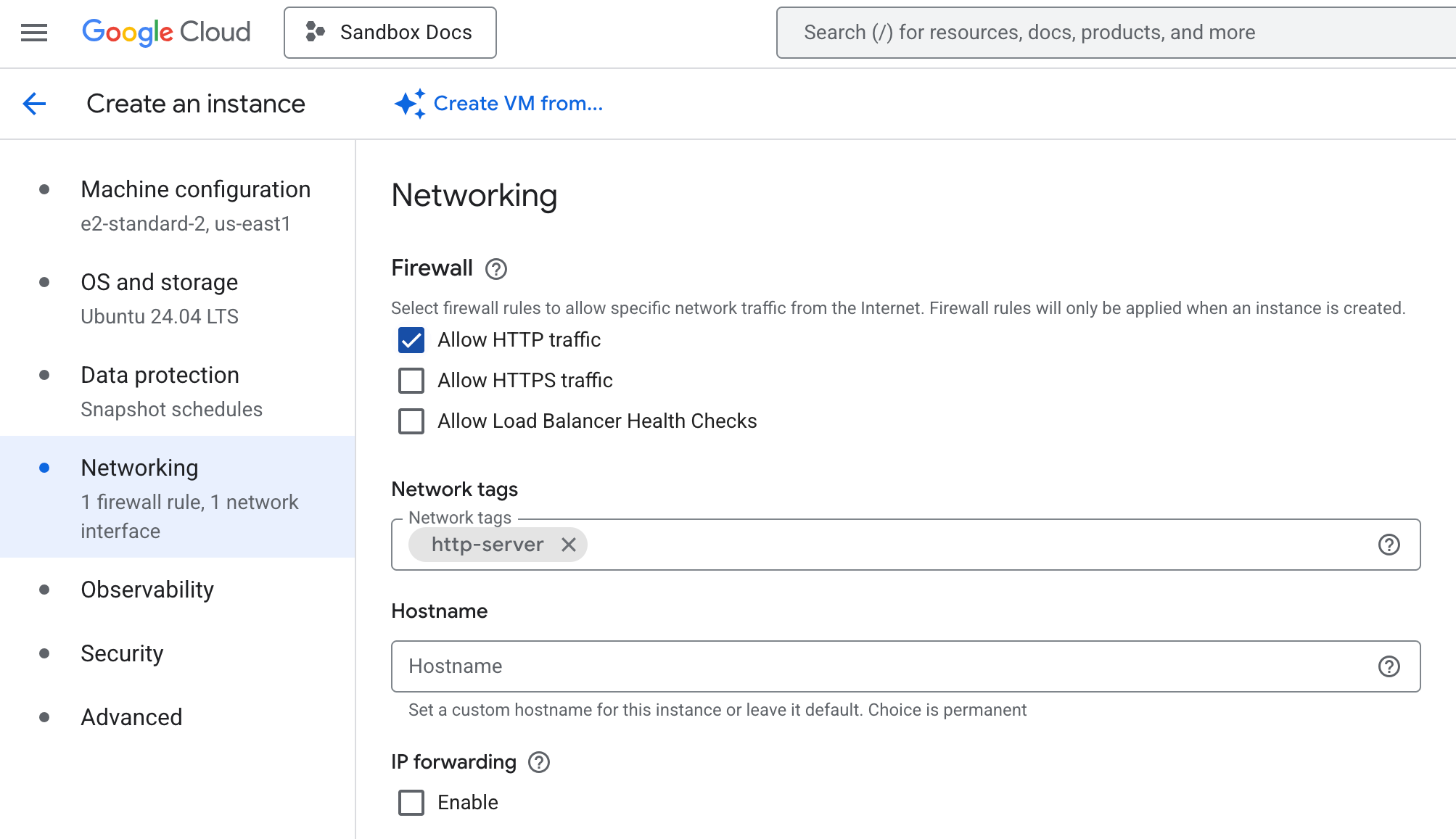

5. Under Networking, select Allow HTTP traffic. This will automatically create a firewall rule to open port 80.
6. Keep defaults for other settings (or adjust according to your preferences), then click Create to launch the VM.

Configure firewall for SSH and HTTP

Depending on your project settings, a default firewall rule might already allow SSH access. By checking Allow HTTP traffic while creating the instance, HTTP (port 80) is also open. If you need to adjust or review these rules:

1. In the VPC network menu, go to Firewall.
2. Locate or create firewall rules for:
   • SSH (TCP/22) from your IP or a limited source range.
   • HTTP (TCP/80) for public access or your desired source range.

Connect to the instance

1. Once your VM is running, go to the VM instances list.
2. Click SSH next to your instance, then click Open in browser window to launch an in-browser terminal.

Install OpenOps

Run the following command in your terminal to install, update, configure and run OpenOps:

curl -fsS https://openops.sh/install | sh

Alternatively, you can follow the manual installation steps:

Show Installing OpenOps manually

1. Install the unzip utility:
   sudo apt install unzip

2. Create a new directory and download the OpenOps release files:
   mkdir -p openops && cd openops && \
   wget https://github.com/openops-cloud/openops/releases/download/0.6.16/openops-dc-0.6.16.zip && \
   unzip -o openops-dc-0.6.16.zip && cp -n .env.defaults .env

3. Update the application URL to use the instance’s external IP address:
   EXTERNAL_IP=$(curl -4 -s ifconfig.co)
   sed -i "s|http://localhost|http://$EXTERNAL_IP|g" .env

4. Open the .env file in the OpenOps installation folder. Change the values of the following variables that represent credentials. Do it now, as you won’t be able to change these values after the initial deployment:
   • OPS_OPENOPS_ADMIN_EMAIL: the email of your OpenOps installation’s root admin account.
   • OPS_OPENOPS_ADMIN_PASSWORD: the password of your OpenOps installation’s root admin account.
   • OPS_POSTGRES_USERNAME: the username of the Postgres database that OpenOps uses.
   • OPS_POSTGRES_PASSWORD: the password of the Postgres database that OpenOps uses.
   • OPS_ANALYTICS_ADMIN_PASSWORD: the password of the OpenOps Analytics admin account (the username is hardcoded to admin).
5. Install Docker using Snap:
   sudo snap install docker

6. Pull the images and start the Docker containers:
   sudo COMPOSE_PARALLEL_LIMIT=4 docker compose pull -q && sudo docker compose up -d

   If you encounter a rate limit, rerun the pull command. Note that pulling images may take several minutes.

If you did not update credentials in the .env file, the default username is [e-mail] and the password is please-change-this-password-1.

You can now access the OpenOps application by navigating to the public IP address of your (e.g., http://20.20.20.20).

Network ports used by OpenOps

By default, OpenOps does not require any inbound ports other than the application port 80.

The following ports are used by bundled services and, in most cases, should not be exposed:

• 5432: The PostgreSQL database used by OpenOps. Expose this port only if you need direct database access, such as for connecting OpenOps to external analytics tools. Restrict access to a VPN or a trusted IP range.
• 6379: OpenOps’ internal Redis service. Expose this port only if required for debugging or monitoring purposes. Restrict access to a VPN or a trusted IP range.

External databases

To use external PostgreSQL or Redis databases, modify the relevant variables in the .env file. You can disable the corresponding containers by adding a profile in the docker-compose.yml file:

services:
  postgres:
    profiles: ["db"]

If you remove or disable the db profile in .env or in Docker Compose, that container won’t start.

After making any changes to the .env file, restart the OpenOps containers:

sudo docker compose down
sudo docker compose up -d

Enabling TLS

For production usage, it’s recommended to enable TLS (HTTPS). In addition to the security aspect, this also ensures that workflow templates load properly in all browsers.

Automatically

The easiest way to enable TLS is to use an OpenOps script that requests and sets up a TLS certificate from Let’s Encrypt. Before running the script, make sure you have a domain name that points to your ‘s external IP address. If you’re configuring DNS right before running the script, you may need to wait for the DNS change to propagate.

1. Run the following command in your terminal:
   curl -fsS https://openops.sh/tls | sh

2. When prompted, enter a domain name that points to the external IP address of your .
3. When prompted, enter an email address to receive certificate-related notifications from Let’s Encrypt.

The script will use the Certbot library to request a certificate for your domain from Let’s Encrypt. It receives and saves the certificate, updates the OpenOps configuration file accordingly, and restarts OpenOps.

By default, the certificate expires in 3 months. See https://certbot.org/renewal-setup if you want to configure auto-renewal.

Manually

Alternatively, you can create a TLS certificate yourself. This lets you use DNS validation from Let’s Encrypt (rather than the HTTP validation the automatic script performs) or request a certificate from a different provider.

To set up TLS manually:

1. Obtain certificate and private key files from your certificate provider.
2. Upload the certificate files to your OpenOps installation under the tls directory:
   • <OpenOps installation path>/tls/cert.pem (certificate file)
   • <OpenOps installation path>/tls/key.pem (private key file)
3. Open the .env file in your OpenOps installation directory and update the following variables:
   • Set OPS_NGINX_CONFIG_FILE to nginx.gateway.tls.conf
   • Set OPS_PUBLIC_URL to the secure URL of your OpenOps installation (e.g. https://openops.example.com)

After making any changes to the .env file, restart the OpenOps containers:

sudo docker compose down
sudo docker compose up -d

Disabling host validation

By default, OpenOps does not allow workflows to call internal network addresses such as 127.0.0.1 or 192.168.0.0. This affects HTTP and SMTP actions, as well as webhook triggers. Host validation protects users from creating workflows that could accidentally or maliciously access internal services, scan networks, or escalate privileges.

You may need to disable this check in certain circumstances, such as in non-production deployments or when workflows intentionally interact with internal-only infrastructure.

To disable host validation, open the .env file in your installation folder and set the OPS_ENABLE_HOST_VALIDATION environment variable to false.

After making any changes to the .env file, restart the OpenOps containers:

sudo docker compose down
sudo docker compose up -d

Disabling this check removes an important safety guard and may allow workflows to access internal infrastructure. Use caution and avoid disabling it in production.

Configuring allowed SMTP ports

By default, OpenOps allows SMTP connections on ports 25, 465, 587, and 2525. Administrators can customize which SMTP ports are available by setting the OPS_SMTP_ALLOWED_PORTS environment variable in the .env file.

To configure allowed SMTP ports, open the .env file in your installation folder and set the OPS_SMTP_ALLOWED_PORTS variable to a comma-separated list of port numbers:

OPS_SMTP_ALLOWED_PORTS=25,465,587,2525

Port numbers must be valid TCP ports in the range 1-65535. At least one valid port must be configured. Invalid port numbers will be filtered out.

After making any changes to the .env file, restart the OpenOps containers:

sudo docker compose down
sudo docker compose up -d

Updating OpenOps to a newer version

See Updating OpenOps.
